P.A.T.T.I. - K® Analog Adhesion Tester
Article No. 14413

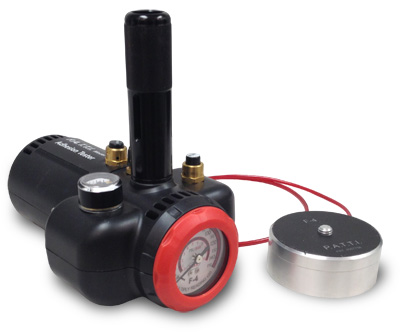

Patti-K Analog Adhesion Tester C W/F-4
The self-aligning PATTI-K® quantitatively measures the adhesion strength of numerous coatings, including: paints, polymers, ceramics, inks, films, adhesives, and thermal or arc-sprayed metals.
Features
- Allows for testing coatings up to 5000 psi(using F-8 Model with standard 1/2" stubs)
- No Conversion Charts needed for the most popular configurations. F-2, F-4 and F-8 models with 1/2" stubs available.
- Tensile Strengths noted in units of psi and bar
- Accepts 12 gram, unthreaded CO2 Cartridges or External Air Supply
- The new design makes the P.A.T.T.I.-K® lighter than any other portable adhesion tester
- Laboratory or field use.
- The test surface can be smooth, rough, porous, flat or curved (please contact us for application specific solutions). Custom-machined pull-stubs are available at any size, either flat or with a radius to match curved surfaces.
- Can also be used to test the strength of adhesives under non-room environmental conditions from 32-212 degrees Fahrenheit ( 0 - 100 degrees Celsius).
- Features a patented piston design which assures uniaxial alignment with the pull-stub axis for "true tensile testing". It is self-aligning, so there is no operator bias.
- There is a different piston for each load range, it is recommended that you choose the piston whose midpoint testing range is closest to the suspected tensile strength of your coating. For instance, suppose that your coating has a tensile strength near 1000 psi. You would choose the F-2 piston option. Although the F-8 piston could test a coating in this range, it would be on the lower end of the range of the F-8. At least 100 psig supply pressure (up to 150 psig) is required
Technical Attributes
-
- Data
-
Gas Supply: Self-contained (6 portable 12 gram CO2 cartridges included) or external supply (>100 psig) Weight: < 2 pounds Dimensions (Control Module): 7" x 5" x 3" (17.8 x 12.7 x 7.6 cm) Load Range: 100-5000 psi using 1/2" pull-stubs Operating Temperature Range: 50-120 degrees Fahrenheit Standards: Conforms to ASTM D 4541: "Pull-Off Strength of Coatings Using Portable Adhesion Testers" and is classified as a Type IV instrument. Material: Plastic Enclosure Display: Analog Gas Supply: 16g Co2 Cartridges/ External Air Compatible Pistons: F-2, F-4 or F-8 Tensile Strength Conversion: Scaling Factor Piston: F-2 F-4 F-8 Load Range (PSI using 1/2" dia. pull-stubs): 100-1000 200-2000 400-4000 Piston Diameter: 2-1/4" (2.25") 2-7/8" (2.875") 3-3/4" (3.75")
Procedure
- The P.A.T.T.I.-K® uses compressed inert gas to apply a continuous tensile load to an aluminum pullstub which is bonded to the test surface with an adhesive.
- After the adhesive has cured, the operator attaches the piston. Then the operator pushes and holds the "RUN" button. A continuous load is then applied perpendicular to the pull-stub until failure occurs, or until a specified load is reached.
- The P.A.T.T.I.-K® can be pressurized with CO2 cartridges to make it portable for field use. In the laboratory, nitrogen or any clean inert gas system providing at least 100 psig (up to 160 psig) can be used.
Delivery Content
Analog Laboratory/Field control module, one single load range F-4 Piston , transport carry bag, accessory kit (50 pull-stubs, 50 adhesive masks, epoxy kit 907, 6 CO2 cartridges and instruction manual.
