Single angle gloss meter
Article No. 4569

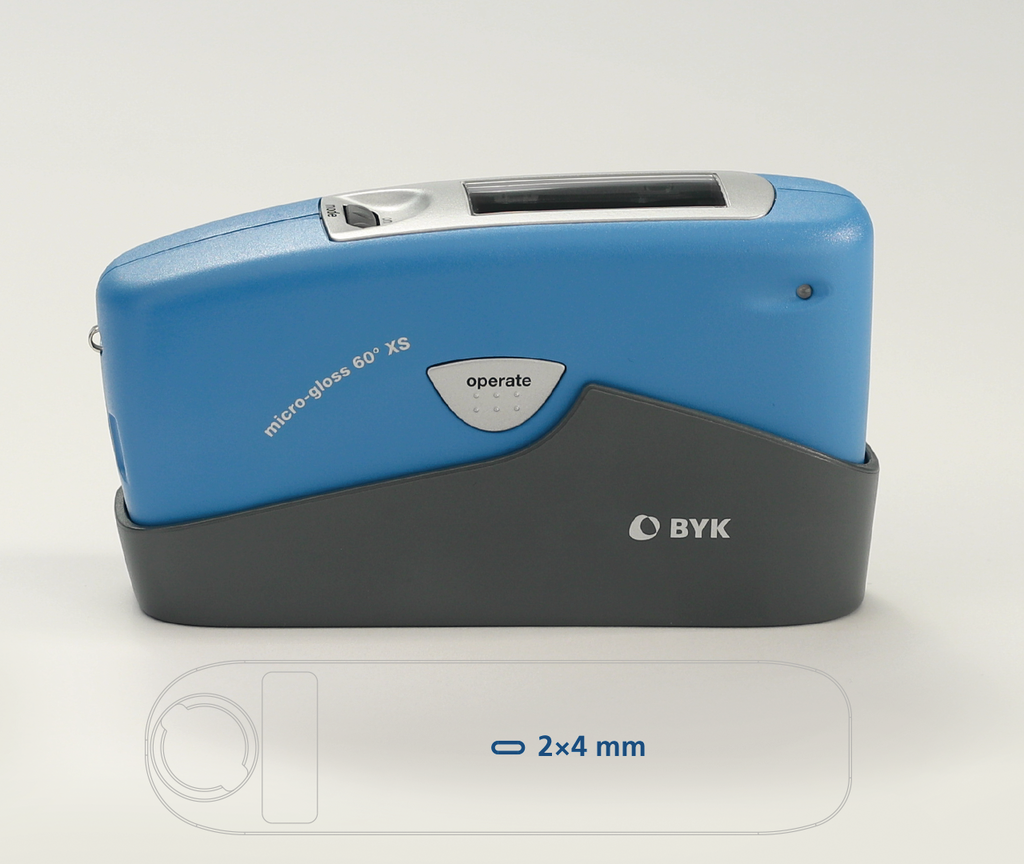

micro-gloss 60° XS
Gloss meter 60° with ultrasmall measurement port
- Small port for small parts
- 60° angle for any material
- Measuring area 2 x 4 mm
Features
The micro-gloss has been the unsurpassed industry standard in gloss measurement for many years. The smart functions and intuitive menu operation make gloss measurement an easy task. Outstanding performance in temperature control and inter-instrument agreement guarantee always reliable QC.
- Intelligent gloss measurement with smart communication
- Excellent repeatability and inter-instrument agreement guaranteed
- Intelligent auto diagnosis guarantees always accurate readings
- Brilliant color display easy to read - easy to use
- Statistics, Pass/Fail and Memory - ideal for QC and checks in the field
- Continuous mode to check uniformity over large areas
- smart-chart software: instant QC reports with trend graph and Pass/Fail limits
Technical Attributes
-
- Geometry
- 60°
-
- Measurement Area / Performance
- small area
-
- Application
- semi gloss
-
- Measuring Area
-
2 x 4 mm
-
- Measuring Area
-
0.08 x 0.16 in
-
- Measuring Range
- 0 - 1000 GU
-
- Repeatability
-
0 - 100 GU: ± 0.2 GU
100 - 2000 GU: ± 0.2 %
-
- Reproducibility
-
0 - 100 GU: ± 0.5 GU
100 - 2000 GU: ± 0.5 %
-
- Spectral sensitivity
- CIE standard observer for illuminant CIE-C
-
- Measuring time
- 0.5 seconds / geometry
-
- Memory
- 999 readings with date and time
-
- Interface
- USB
-
- Languages
- English French German Italian Spanish
-
- Power supply
- one 1.5V AA Alkaline Battery, or via USB-port
-
- Battery Capacity
- 4,000 readings
-
- Weight
- 0.4 kg
-
- Weight
- 0.9 lb
-
- Operating temperature
- 15 - 40 °C
-
- Operating temperature
- 60 - 104 °F
-
- Relative humidity
- up to 85 %, non-condensing
-
- Dimensions: L x W x H
- 15.5 x 4.8 x 7.3 cm
-
- Dimensions: L x W x H
- 6.1 x 1.9 x 2.9 in
Technical Specifications
Gloss Measurement
General
Standards
Delivery Content
Glossmeter
Calibration holder 60° XS (4559)
USB-cable micro-gloss (4405)
Software with 2 licenses for download:
smart-lab Gloss (4866) or smart-process Gloss (4867)
Battery
Traceable certificate
Manual
Carrying case
Calibration holder 60° XS (4559)
USB-cable micro-gloss (4405)
Software with 2 licenses for download:
smart-lab Gloss (4866) or smart-process Gloss (4867)
Battery
Traceable certificate
Manual
Carrying case
