Buchholz Indentation Tester BH2000
Article No. 11781
Buchholz Indentation Tester ISO
The Buchholz Indentation Test BH2000 is the standard test for measuring the hardness of coatings. The calibrated slip-on weight with special cutter is positioned on the test specimen for a set period of time. The length of the indentation on the coating is an indication of the hardness of the surface. Mandatory test in Qualicoat, QIB and GSB accredited laboratories.
Features
Robust in design and precision-machined
Easy to clean, always clean the instrument after use with a soft dry cloth
Meets standards: EN ISO NF 2815-2003, BS 3900 E9, ECCA T12 - 1985, NF T 30-052
Annual calibration is recommended.
Standards
Conforms to ASTM D2240, DIN 53505, ISO 868 and ISO 7619
Procedure
The test shall be carried out at a temperature of 23±2°C (73±1.2°F) and a relative humidity of 50±5%.
- Measure the coating thickness minimal 3-45 µm (.039 - 1.77 mils) (according to the Buchholz Table)
- The coating to be tested must be smooth and clean.
- Use the level gage to ensure the test panel is at level on the testing surface.
- Use the template to mark the spot to be measured and the feet positions on the test object. The indentation will be visible at the gap in the middle.
- Check the indentation body (weight, wheel and fixing points) and make sure they are free from dust.
- Gently, and without tilting or lateral movements, place the indentation body on the test panel, feet first, exactly on the marked positions, then lower the indenter carefully until it touches the panel and start T1 on the timer.
- After 30 seconds remove the Buchholz Indentation Tester from the surface and start T2 on the timer. While removing be careful not to apply any pressure to the indenter.
- After the recovery period of 35 seconds measure the length of the indentation (L) with the measuring microscope.
- Look up the indentation length (L) in the Buchholz table and find the corresponding Buchholz
Delivery Content

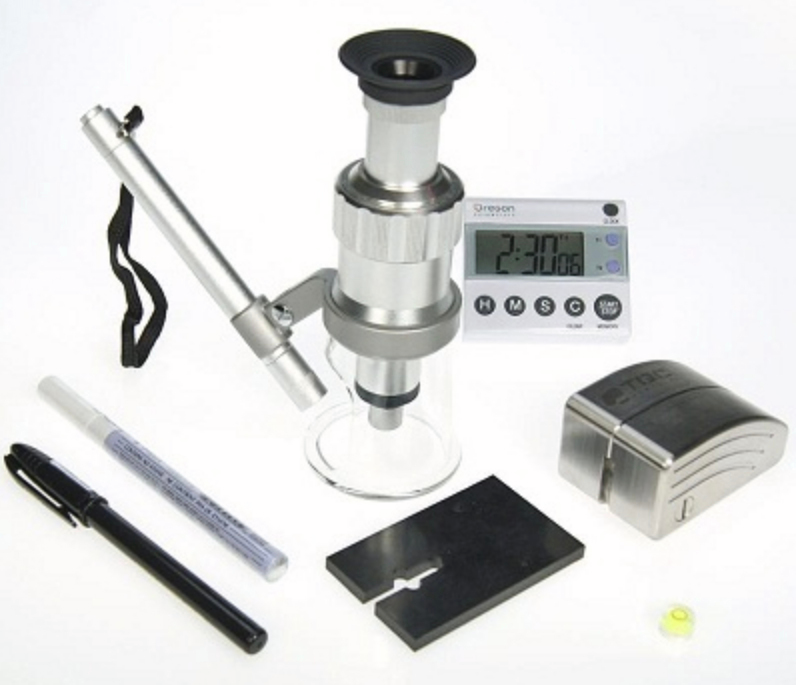

The set consists of a calibrated slip-on weight with a special cutter, an illuminated microscope, a level gage, a digital dual timer, two markers with template and three AAA batteries.
