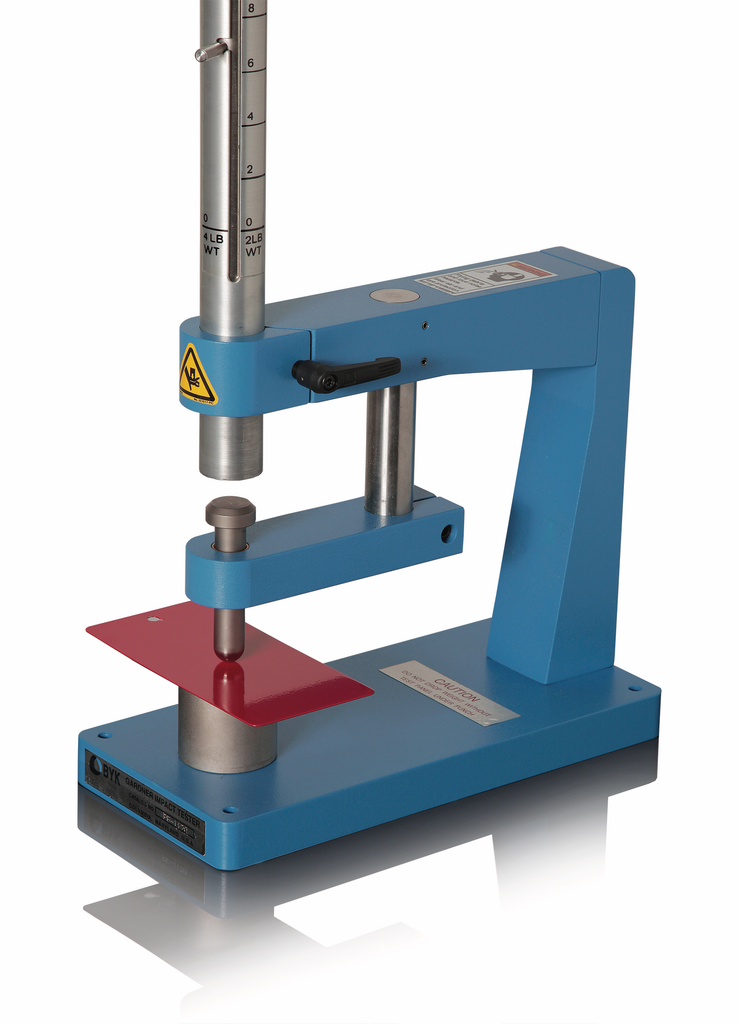

Heavy-Duty Impact Tester
Article No. 1120
Heavy-Duty Impact Tester, English
Falling Weight Test, 4 lb weight and punch in two parts
- ASTM Version
- English Scale
Features
The Heavy-Duty Impact Tester has a very versatile design to comply with ISO and ASTM standards for the coating and plastic industries.
- Heavy duty construction for long life
- More than 10 weights to choose
- Large selection of die and indenter sizes
- Easy change-over of weight, dies, and indenters
- Economically priced
Technical Attributes
-
- Weights included
- 2 lb & 4 lb
-
- Weights included
- 0.9 kg & 1.8 kg
-
- Scale
- English
-
- Weight
- 10.4 kg
-
- Weight
- 23 lb
-
- Dimensions: L x W x H
- 29 x 14 x 127 cm
-
- Dimensions: L x W x H
- 11.5 x 5.5 x 50 in
Technical Specifications
General
Standards
Delivery Content
Basic plate with clamping device
Guide tube with inch-scale (1248)
Falling weight 2 lbs (1240)
Falling weight 4 lbs (1241)
Ball punch 0.625 in (1243)
Die 0.640 in (1264)
Anvil
Manual
Guide tube with inch-scale (1248)
Falling weight 2 lbs (1240)
Falling weight 4 lbs (1241)
Ball punch 0.625 in (1243)
Die 0.640 in (1264)
Anvil
Manual
