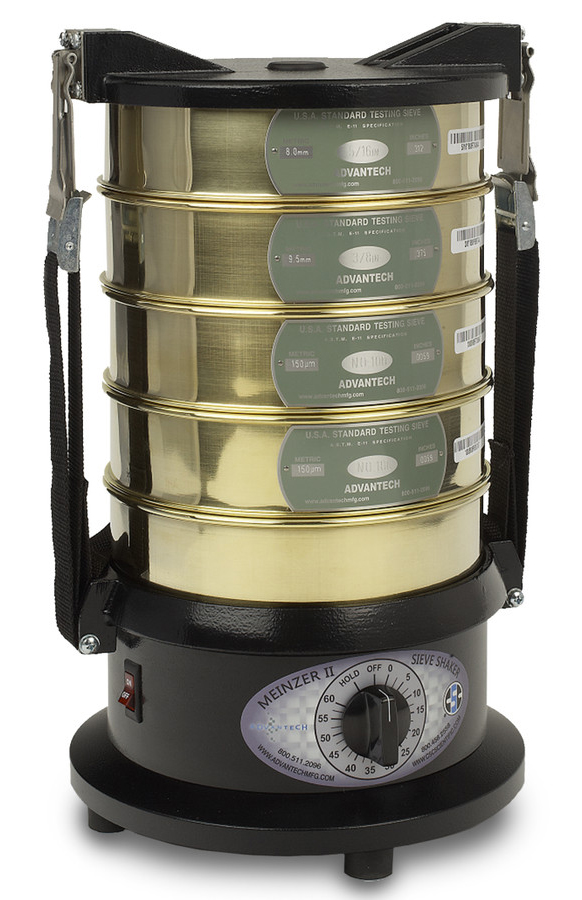

Meinzer II Test Sieve Shaker
Article No. 13251
Meinzer Portable Vibrating Sieve Shaker
The Meinzer II™ Test Sieve Shaker for 8" or 200mm test sieves is a portable vibrating sifter, which is virtually maintenance free and built to last. (Sieves, Pan & Covers must be ordered separately)
Features
- Provides precise, repeatable results time after time
- Utilizes an electromagnetic drive motor, a fixed amplitude and rubber spring mounts
- Produces the simultaneous vertical and horizontal movement needed for basic dry particle sizing analysis
- Lightweight and portable
- Easy to use
- Large sieve capacity
- Built-in digital timer with automatic shut off or continuous run feature
- Maintenance free, no moving parts
- Rugged construction
- Less sample blinding and degradation
- Each unit is thoroughly tested, guaranteeing performance right out of the box.
- Durable enclosed motor
- Great in the field or in the lab
- One-year limited warranty
Technical Attributes
-
- Data
-
Capacity 8” or 200mm: 8 full ht. + pan & cover
15 half ht. + pan & coverDimensions: 10” dia. x 7” h (254 mm x 178 mm) Speed: 3,600 min Throw: Horizontal 2 mm Vertical 3 mm Weight: 36 lbs. (16.3 kg) net Timer: 1 - 60 min Agitation Method: Vibratory
