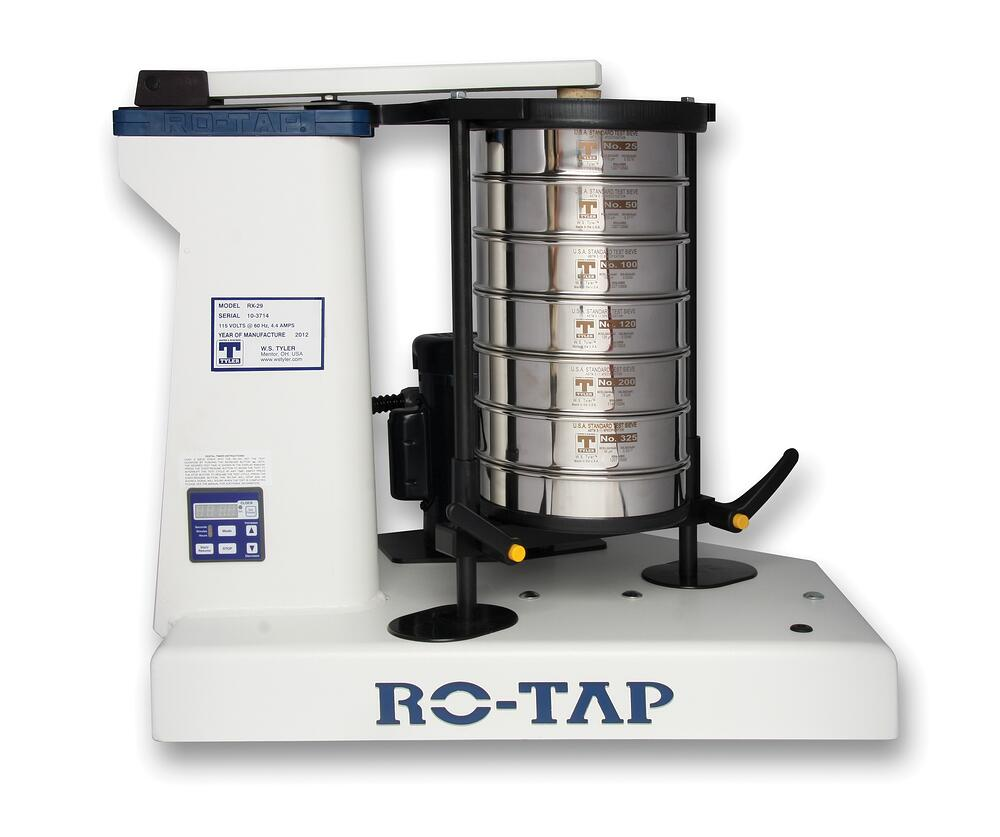

RO-TAP™ Test Sieve Shaker
Article No. 13247
RO-TAP 8” Test Sieve Shaker RX-29, 230v
- RX-29 RO-TAP Sieve Shaker
- Designed for testing with 8" diameter test sieves
- 230V
Features
- The RO-TAP Test Sieve Shaker is an industry standard in test sieve shakers.
- Has a unique two dimensional operation: a horizontal, circular motion and a vertical, tapping motion. This special action allows material particles to stratify and “seek” critical openings in the test media.
- Accurate and consistent particle analysis testing
- Testing applications - 2" down through 635 mesh (20 micron)
- Requires minimal maintenance
- Heavy-duty use
- Features 99 minute digital timer/clock
- Tolerance is +/- .1 of a second
- Each unit is test run and serialized
- Newly designed easy lock clamping system
- NOTE: Sieves, covers and pans not included. Must be ordered separately
- Full Height: 6 Sieves w/FH Pan
- Half Height: 13 Sieves w/HH Pan
Technical Attributes
-
- Data
-
Oscillations per Minute: 278 ± 10 Oscillations Displacement: 1" x .75" Taps per Minute: 150 ± 10 RPM: 1725 Cycle Current: 60 Hammer Weight: 5 lbs., 6 oz. Unit Weight: 180 lbs. Shipping Weight 190 lbs. Dimensions (W x D x H): 28 x 21 x 25" (71 cm x 54 cm x 64 cm) Shipping Dimensions (W x D x H): 31 x 23 x 30” (77cm x 59cm x 77cm) Testing Applications: 2 in. through US #635 mesh (20 μm)
Delivery Content
Instruction manual, Spun cover for the top of the sieve stack, Power cord suitable for selected line voltage operation
