JX Wood Moisture Meters
Article No. 15489

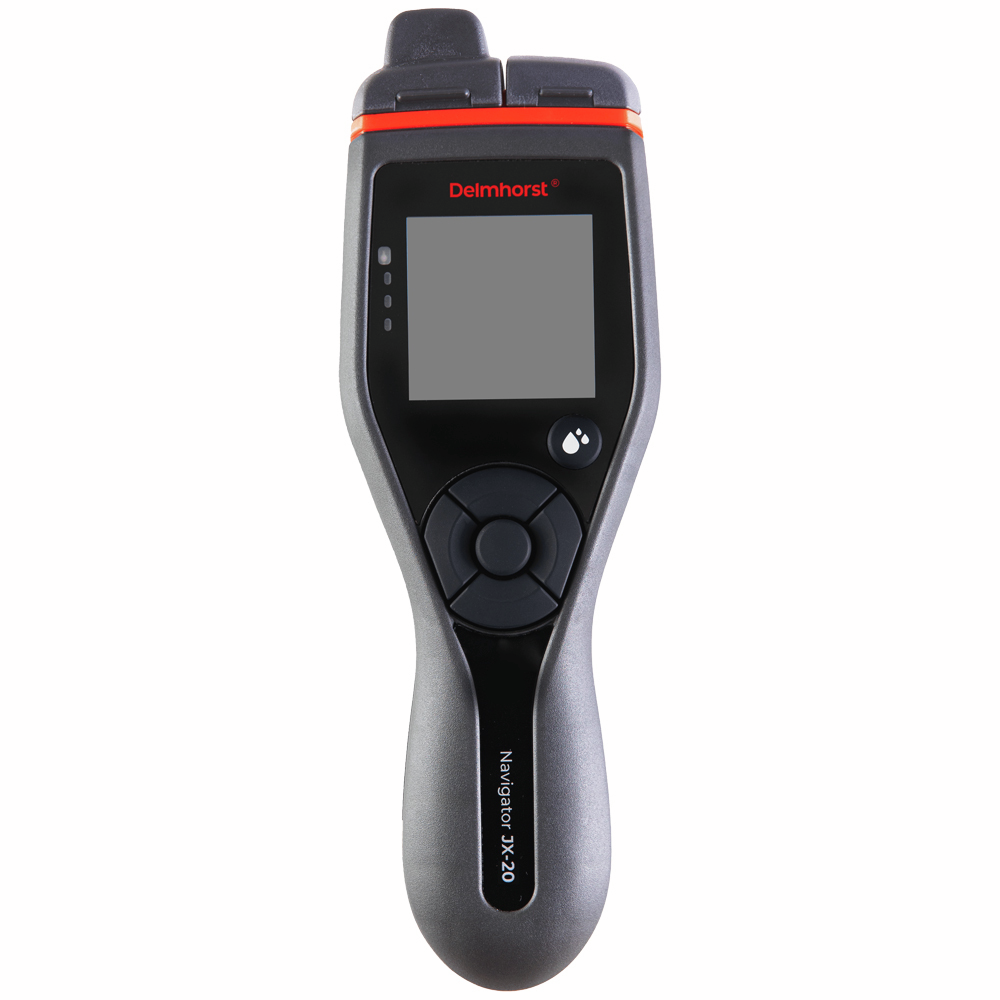

Moisture Meter JX-20 with case
The JX-20 is an accurate and versatile moisture meter great for lumber/woodworking, flooring professionals and inspectors.
Features
- Large, custom display with auto backlight - easy to read under all conditions
- MC Range - 6%-60% Wood (Douglas Fir)
- Species - 74 included
- Wood temperature correction (ºF/ºC)
- Pins/electrode correction (insulated or non-insulated)
- Alarm set point - alerts to user-selected MC level
- On-screen statistics - High, Low, Average, Standard Deviation, View all readings
- Internal calibration check
- "Low Batt" warning with audio
- Auto off timer. Set to 1m, 4m or 10m
- Integral contact pins max 5/16" penetration (use 2498/A-100)
- Compatible with any Delmhorst external electrode.
- Color-coded LED's
- QR code on meter for easy access to support materials
- 2-year warranty on manufacturer's defects. Bonus extended warranty with on-line registration
Technical Attributes
-
- Data
-
Temperature Compensation Range (not operating temperature): 0-255 °F / -18-124 °C Reading Range Douglas Fir: 6% MC - 60% MC (nominal range based on 70°F) 19 Rev 3 - May 2024
Power:2x AA Alkaline Batteries Battery life while using the meter in reading mode and active LED's is estimated at 125-150 hours.
TIP: Extend battery life by turning Bluetooth® off in the meter when not in use, setting the backlight brightness low, and using shorter timeout settings.Size: 8.65 in x 2.85 in x 1.60 in (21.57 cm x 7.24 cm x 4.06 cm);
in carry case - 9.5in (241mm) x 6.5in (165mm) x 2.5in (64mm)Weight: meter only - 0.4.5oz (1.3g);
in carry case - 18oz (510g)Regulations/Compliance: CE, RoHS, REACH, WEEE 20 Rev 3 - May 2024
Delivery Content
2x AA batteries - Alkaline Energizer, Sturdy plastic carrying case
