Heated Perforated Vacuum Bed

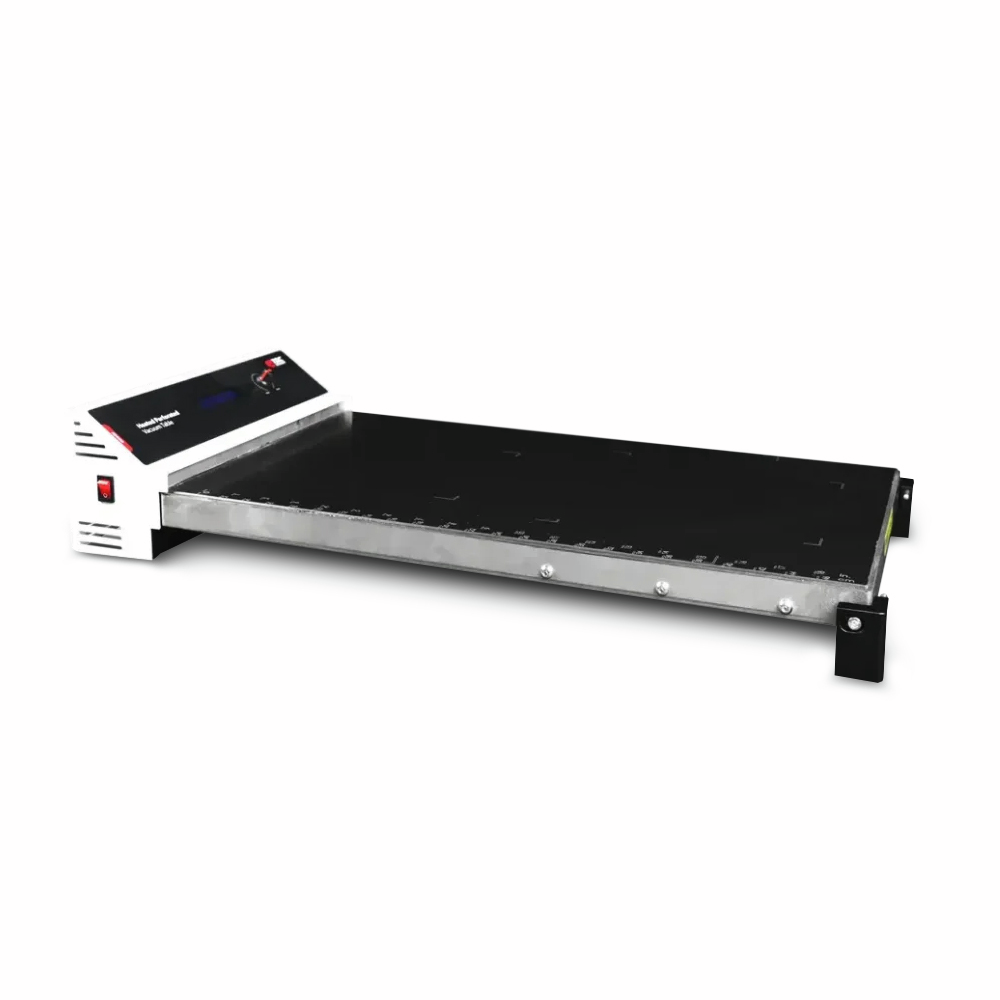

Heated Perforated Vacuum Bed

Article No. 14575

Heated perforated vacuum bed 110 VAC

  • Heated Vacuum Bed
  • Perforated
  • 110 VAC

Select your model

$3,268.00 excl. taxes & shipping cost

Features

  • The Heated Perforated Vacuum Bed applies even and consistent films of paint and coatings on test charts.
  • It comes with a built-in temperature control and display.
  • Durable and inert surface with an absolute flatness
  • To be used with charts, foils, panels and other flat surfaces
  • Even temperature distribution
  • Digital temperature control
  • Test coatings to evaluate opacity, hiding power and other appearance parameters.
  • Test adhesives like glues to evaluate bonding strength at different temperatures.
  • Apply slurry pastes for research of thin film technologies in battery development.
  • Prepare test charts for scrub, abrasion, and washability tests
  • You can create thin films of paint, lacquers and other materials.
  • The Heated Perforated Vacuum Table is compatible with all common type applicators such as Baker-applicators, bar-coaters and wire wound rods, Bird-applicators, 2 Path applicators, 8 Path applicators Casting knife and Microm adjustable film applicators.
  • You can add an optional vacuum pump to hold your test charts, non-elastic foils and other flat substrates firmly in place. Small sized specimens can be held in place by covering any remaining vacuum holes. Heat is evenly distributed so the entire vacuum plate has the exact same temperature. Temperature can be adjusted from ambient till 125°C. The digital controller allows users to accurately set the temperature to one decimal place.
Read more

Technical Attributes

  • Data
    Minimum Temperature:Ambient + 5°C
    Maximum Temperature:From ambient till 125°C
    Resolution of Set Temperature:1°C
    Resolution of Readout Temperature:0.1°C
    Drawn Down Length:A3. If smaller test charts are used an A3 sized paper frame has to be created to protect the holes from paint walk.
    D x W X H:20.5 x 12.2 x 2.8 inch / 520 x 310 x 72 mm

Procedure

  1. The TQC Sheen Heated Perforated Vacuum Table is operated by two buttons.
  2. The power switch on the side and the temperature control button on the front.
  3. To set the temperature first turn the machine on and then set the temperature.
  4. The test bed will warm up to the set temperature.
Read more

Delivery Content

Heated Perforated Vacuum Table Purchase vacuum pump separately
