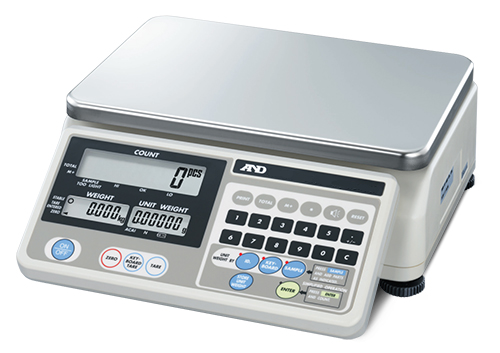

HC-i Series Counting Scales
Article No. 10822
Counting Scale 15kg x 0.002kg
The HC-i Counting Scales are fast and accurate counting scales with unique accessibility features. They are high value counting scales that provide 1 in 750,000 count accuracy while facilitating your operation with such features as the unit weight entry navigator and audible weighing assist.
Features
- It has an automatic counting accuracy improvement feature (ACAI) that automatically corrects erros caused by variation in unit weights and provides a greater counting accuracy.
- Detachable Display Unit - It is possible to put the display unit on a table or wall for diverse counting applications. (Standard cable: 60cm, Optional extension cable HC-08i: 2m)
- Comparator Function - The scale can indicate whether the count or weight of pieces is within the designated limits with "HI", "OK" or "LO" display.
- Sealed Lead Acid (SLA) Rechargeable Battery - Optional SLA battery (6V, 4Ah) has an approximate 80-hour battery life when fully charged.
- Accumulation Function - Total piece calculation stored in memory. Works in automatic mode or manual mode.
- ID Memory Function - The scale can store up to 99 unit weights with tare weight and comparator limits by ID numbers (ID 01 to ID 99).
- Universal Flexi Coms (UFC) - You can design your own printing format and easily print out the measurement data.
- Auto Power OFF Function - Battery save function for SLA (Sealed Lead Acid). Switches OFF automatically if zero is displayed continuously for 5 minutes.
- Calibration Function - Simple and easy to calibrate with external standard mass by full digital calibration for accurate weighing.
- Large LCD Display showing Detailed Information - Displays piece counting, weight, unit weight, ID number, comparison result by “HI”, “OK” or “LO” and AC or battery power supply.
- Simple Operation Mode - By setting only the keys necessary for your operation, you can avoid making any unwanted operational mistakes. This mode is available for zero setting, tare weight cancel setting, and sample counting setting.
- High Internal Resolution & Wide Counting Range - High internal resolution of 1/600,000 (HC-3Ki / 6Ki / 30Ki) or 1/750,000 (HC-15Ki) is enhanced for greater counting accuracy.
- Easy Data Retrieval - It is easy for the user to instantly retrieve article data such as the ID number, unit weight, tare weight and comparator upper/lower limits without any difficulties. It helps to improve the effectiveness and reliability of the operation. Especially effective for multi product lines.
- Large Stainless Steel Weighing Pan - Large articles can easily be placed on the weighing pan. The weighing pan is removable and easy to clean.
Technical Attributes
-
- Data
-
Part No.: 10822 Capacity: 30 lb / 15 kg Resolution: 0.005 lb / 0.002 kg Min. Unit Weight: Normal Mode: 0.4g Fine Mode: 0.02g Readability: 2g Max. Count Display: 750.000 Number of Samples: 10 pieces normal - (5, 25, 50, 100 or random number) Weighing Pan: 300 x 210mm / 11.8 x 8.3 inches Internal Resolution: 1 / 750,000 Non-linearity: ±2g Span Drift: 0.002%/ °C (5°C - 35°C) typ. Operating Temp.: 14°F to 104°F / -10°C to 40°C, 85% RH or lower (No condensation) Display: 7 segment LCD, Character height: pcs 18.6mm, weight / unit weight 11.4mm Display Update: Approximately 10 times per second Interface: RS-232C (Option) Power: AC adapter or SLA Battery (Option) / Battery Operating Time: Approx. 80-hour (without interface) Dimensions: 12.4(W) x 13(D) x 5(H) inches / 315(W) x 331(D) x 126(H) mm Weight (Approx.): 10.6 lb / 4.8 kg Calibration Weight: 15kg ± 0.5g
Procedure
The HC-i series is very user-friendly. Simply follow the blinking lights to obtain the unit weight. Select your preferred method for unit weight entry; sample size weighing, 10-key pad input or ID number data retrieval. The beep function tells you that you have almost reached your target quantity. The scale can even make a beeping sound at shorter intervals, making your counting job faster and easier.
Delivery Content
HCi Series
