CFM / CMM Thermo-Anemometers

Article No. 10132

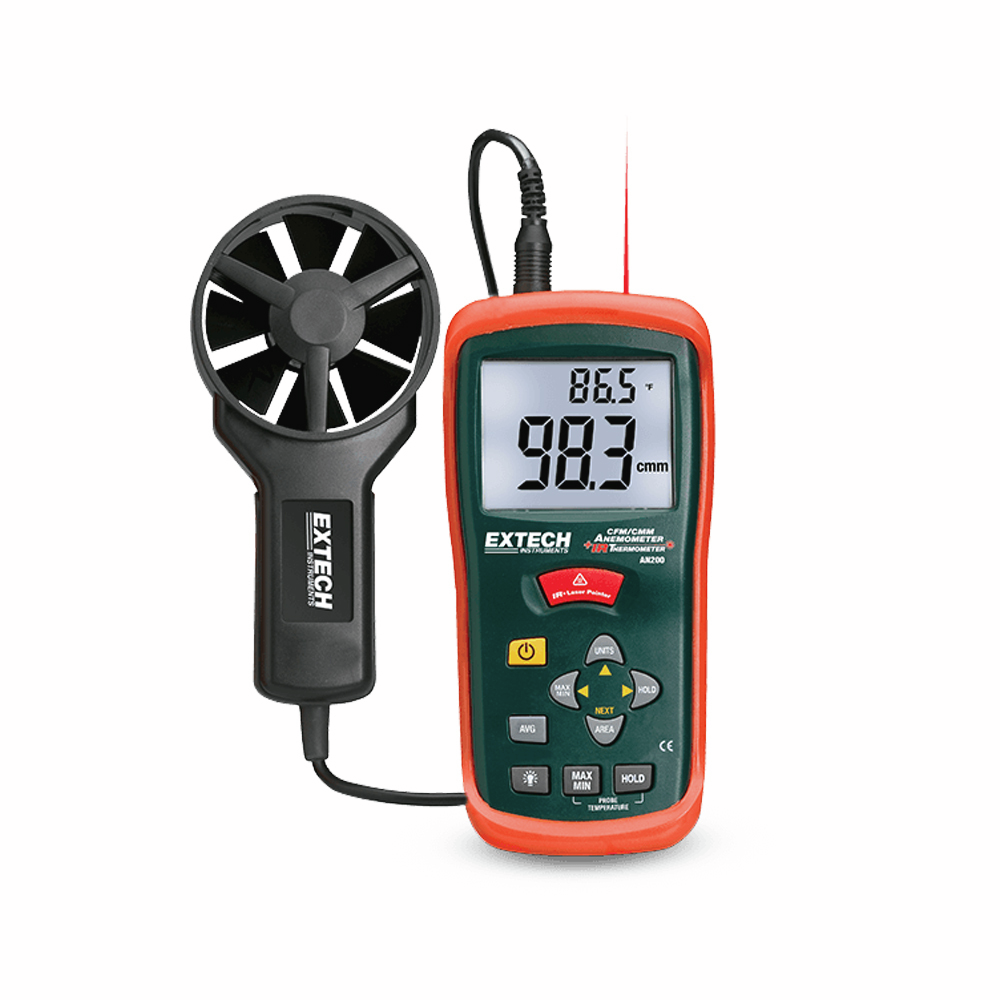

Thermo-Anemometer w/IR Thermometer

AN200 Anemometer with a built-in non-contact InfraRed Thermometer
Built-in non-contact IR Thermometer
Measures remote surface temperatures to 500°F (260°C) with 8:1 distance to spot ratio and Laser Pointer
Resolution of 0.01m/sec

Select your model

excl. taxes & shipping cost

Features

The CFM / CMM Thermo-Anemometers can measure air flow, air velocity and ambient temperature.
There are two models available:
- The AN100 CFM/CMM
- The AN200 with a built-in non-contact InfraRed Thermometer
Simultaneous display of Ambient Temperature and Air Flow or Air Velocity
Up to 8 easy to set Area dimensions (ft2 or m2 ) are stored in the meter’s internal memory
20 point average function for Air Flow
Super large LCD Backlit Display
3% velocity accuracy via low friction 2.83"D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable
Data Hold and MIN/MAX
Auto Power off
Applications: HVAC installation, repair, diagnostics, and optimization; Fume hood testing, installation, and verification; Ventilation system installation, servicing, and analysis; Environmental wind and temperature testing/analysis; Boiler rooms, Ionizer flow output monitoring; Automobile aerodynamic testing; Plant/Facilities Maintenance

Technical Attributes

Data

Specifications		Range	Resolution	Basic Accuracy
Air Velocity:		0.40 to 30.00 m/s	0.01 m/s	±3% m/s
		1.4 to 108.0 km/h	0.1 km/h	±3% km/h
		80 to 5906 ft/min	1 ft/min	±3% ft/min
		0.9 to 67.2 mph	0.1 mph	±3% mph
		0.8 to 58.3 knots	0.1 knots	±3% knots
Air Temperature:		14 to 140°F (-10 to 60°C)	0.1°F/°C	±6.0°F (3°C)
InfraRed Temperature: (AN200 Only)		-58 to -4°F (-50 to -20°C)	0.1°F/°C	±9.0°F (5.0°C)
InfraRed Temperature: (AN200 Only)		-4 to 500°F (-20 to 260°C)	1°F/°C	±2% reading or ±2°F (°C) whichever is greater
Airflow:	AN100	0 to 9999 CMM (m³/min)	0.1
	AN100	0 to 9999 CFM (ft³ /min)	0.1
	AN200	0 to 999,999 CMM (m³/min)	0.1
	AN200	0 to 999,999 CFM (ft³ /min)	0.1
Dimensions/Weight:		7 x 2.9 x 1.3" (178 x 74 x 33mm) / 1.6lbs (700g)

Delivery Content

Comes complete with 9-Volt battery, protective rubber holster, and case.
