PosiTector DPM Dew Point Meter

Article No. 14490

PosiTector Dew Point Meter DPMIR, Std

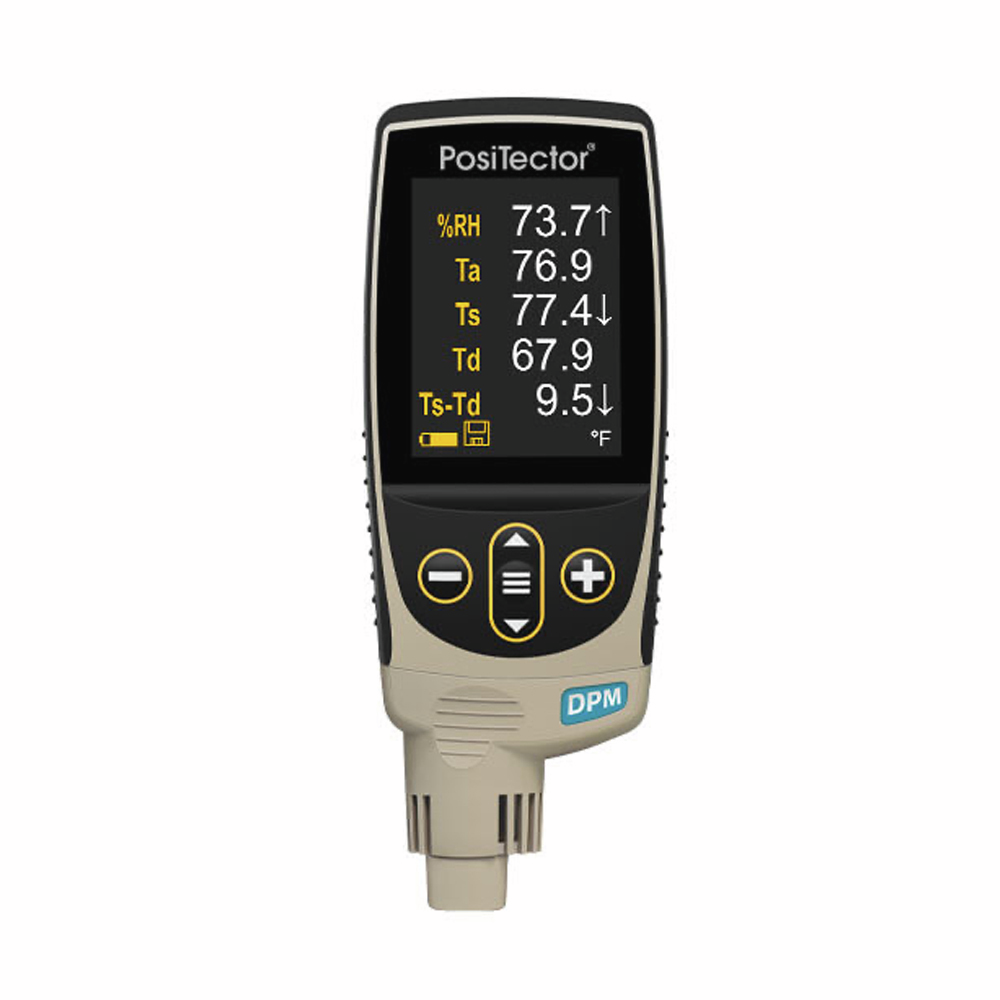

PosiTector DPM Standard Gauge with DPMIR Probe
Integral Probe with Infrared Surface Temperature Sensor
Measured Surface Temperature, Air Temperature, Relative Humidity, Dew Point Temperature, Surface Temperature minus Dew Point Temperature
Includes the ambient temperature and humidity sensors from the PosiTector DPM Integral Probe plus an infrared surface temperature sensor.
Non-contact surface temperature sensor
Measures hard to reach areas and moving parts
4:1 Distance to spot ratio (D:S), optimized for measuring large surfaces, ideal for quickly scanning large structures.
Pre-programmed and user adjustable emissivity options

Select your model

excl. taxes & shipping cost

Features

The PosiTector DPM is a Dew Point Meter great for Environmental Monitoring.
It Measures and records climatic conditions including: relative humidity, air temperature, surface temperature, dew point temperature, wind speed, and difference between surface and dew point temperatures.
Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7, and US Navy NSI 009-32.All readings are constantly updated and displayed simultaneously
Alarms indicate when climate conditions are unsuitable for painting
Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button
No need to consult complex tables or use a slide rule calculator

Weatherproof, dustproof, and water-resistant. IP65-rated enclosure
Ergonomic design with durable rubberized grip
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe
Fast response precision sensors provide accurate, repeatable readings
SmartTrend™ Indicators identify rising, falling, or stable readings
Certificate of Calibration included showing traceability to NIST
Conforms to national and international standards including ISO and ASTM
Screen Capture, save 100 screen images for record keeping and review
Instant-on feature quickly powers up the gage if recently powered down
Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
PosiSoft USB Drive, stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Includes PosiSoft suite of software for viewing and reporting data
Software Updates via web keep your gage current
Every stored measurement is date and time stamped
Auto Log mode records environmental parameters at user selected time intervals
Auto rotating display with Flip Lock
PosiTector DPM L attaches to steel structures to measure and record environmental parameters independently for up to 200 days. Stored datasets can be downloaded using a PosiTector Advanced gage body or Apple/Android smart device.
Celsius/Fahrenheit switchable
Selectable display languages

Technical Attributes

Data

Specifications	Range	Accuracy	Resolution
Surface Temperature:	-40° to 80°C	±0.5°C	0.1°C
	80° to 190°C	±1.5°C	0.1°C
	-40° to 175°F	±1°F	0.1°F
	175° to 375°F	±3°F	0.1°F
Infrared Surface Temperature:*	-70° to 380°C	±1°C + (0.01°C/°C)**	0.1°C
Infrared Surface Temperature:*	-94° to 716°F	±2°F + (0.01°F/°F)**	0.1°F
Air Temperature:	-40° to 80°C	±0.5°C	0.1°C
Air Temperature:	-94° to 716°F	±1°F	0.1°F
Humidity:	0 to 100%	±3%	0.1%
Wind Speed:†	0 to 20 m/s	±3% Full Scale	0.1 m/s
Wind Speed:†	0 to 44 mph	±3% Full Scale	0.1 mph
Dew Point:	-60° to 80°C	±3°C‡	0.1°C
Dew Point:	-76° to 175°F	±5.4°F‡	0.1°F
Size & Weight:	6.25 x 2.4 x 1.2 in. (159 x 61 x 31 mm) 5.3 oz. (150 g) without batteries
* DPM IR models only ** At = 23°C † DPM A models only ‡ Dependent on RH

Probe Style	DPM Built-In Probe with Direct Contact Surface Temperature Sensor	DPMIR Built-In Probe with Infrared Surface Temperature Sensor	DPMS Built-In Probe with K-type Cabled Surface Temperature Sensor	DPMA Built-In Probe with Wind Speed Sensor	DPMD Cabled Probe with 1/2” NPT Threads
Comparison Chart:
Surface Temperature:	•	•	•	•
Air Temperature:	•	•	•	•	•
Wet Bulb Temperature:*	•	•	•	•
Relative Humidity:	•	•	•	•	•
Dew Point Temp.:	•	•	•	•	•
Surface Temp. minus Dew Point Temperature:	•	•	•	•
Wind Speed:				•
*Wet Bulb Temperature is displayed/recorded on Advanced models only

More Information

Standards

Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

Delivery Content

Humidity and temperature sensors, Protective rubber holster, Wrist strap, 3 AAA batteries, Instructions, Nylon carrying case with shoulder strap (DPM/DPMA/DPMD), Hard shell carrying case (DPMS), Protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, Two (2) year warranty.
