SEMicro PATTI Adhesion Tester Accessories

Article No. 12718

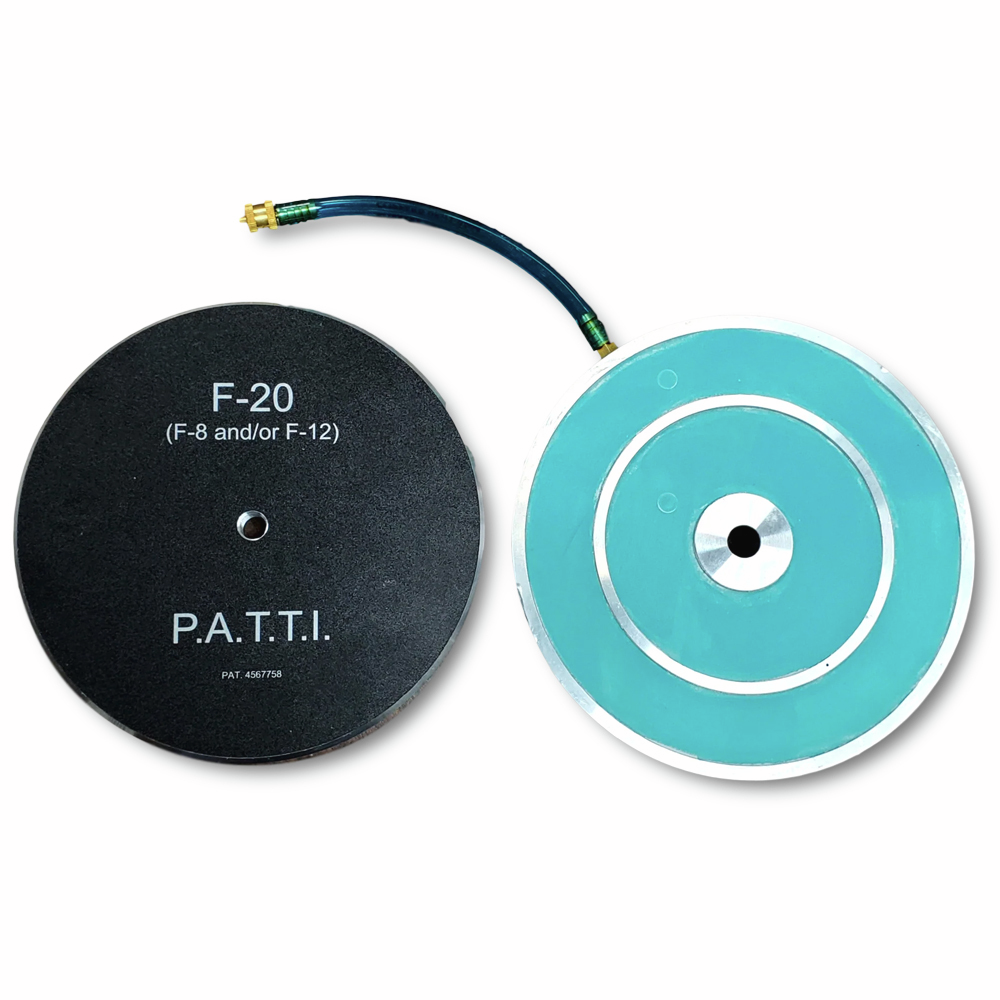

Piston F-20 400-10000 Psi

Select your model

excl. taxes & shipping cost

Features

Each piston comes complete with the required gasket(s), prelubricated and installed
The F-8/12 (F-20) Piston, the largest piston, is like having 3 pistons in 1: an F-8, an F-12 and combined as an F-20. This piston is great if you will be testing many different coatings with different adhesion characteristics. It provides the most flexibility of any piston in our line.
Important: The psi strengths listed are based on 1/2" diameter pull stubs. If you are using any other sized stub, please contact us prior to purchasing a piston to make sure you will be testing in the range desired.

Technical Attributes

Data

Piston:	F-1	F-2	F-4	F-8	F-8/12 (F-20) (3 Load Ranges)
Load Range (PSI using 1/2" dia. pull-stubs):	50-500	100-1000	200-2000	400-4000	F-8; 400-4000 F-12; 600-6000 F-20; 1000-10,000
Piston Diameter:	1-3/4" (1.75")	2-1/4" (2.25")	2-7/8" (2.875")	3-3/4" (3.75")	5 3/4" (5.75")
