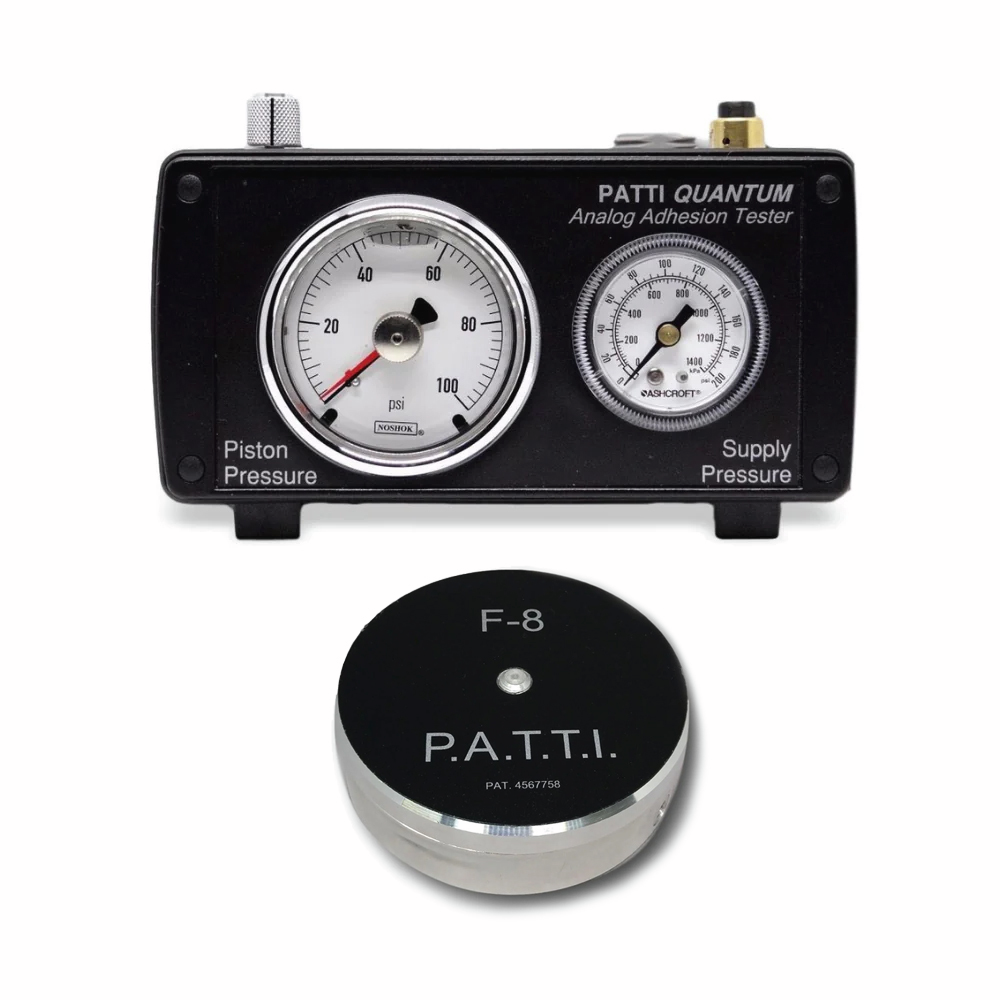

Name: PATTI Quantum Analog with F-8 Piston
Price: 2195.0 USD
Availability: InStock

Features

Powder-Coated box is much more robust than previous PATTI®'s - will maintain its aesthetic value
The PATTI® features a patented piston design which assures uniaxial alignment with the pull-stub axis for "true tensile testing"
New regulator eliminates the internal pop valve, allowing for use of entire air cartridge
New air cartridge capacity is twice that of other PATTI® models
Simplified design requires fewer internal parts and reduces the frequency of maintenance / repair
With the exception of the new, higher capacity CO2 Cartridge, can use the same pistons, pull-stubs and supplies as previous PATTI®'s
The reduced number of internal parts makes the PATTI® QUANTUM lighter than other PATTI®'s and more portable than ever
The self-aligning PATTI®QUANTUM quantitatively measures the adhesion strength of numerous coatings, including: paints, polymers, ceramics, inks, films, adhesives, and thermal or arc-sprayed metals.
Laboratory or field use.
The test surface can be smooth, rough, porous, flat or curved (please contact us for application specific solutions). Custom-machined pull-stubs are available at any size, either flat or with a radius to match curved surfaces.
The PATTI® can also be used to test the strength of adhesives under non-room environmental conditions from 32-212 degrees Fahrenheit (0-100 degrees Celsius).
Features for Digital Models only.
- Maximum load is displayed on a 4-1/2 digit seven-segment display gauge with 0.5% accuracy.
- The digital gauge displays the increasing load and holds the maximum psig value when the Min/Max button is pushed.
- Push Zero/Clear in order to zero the readout and you are ready for the next test.

Technical Attributes

PATTI Quantum

Analog
Piston

F-8

Data

Models:	PATTI Quantum Analog/Concrete	PATTI Quantum Digital	PATTI Quantum Gold
Gas Supply:	Self-contained or external supply, 100psig
Power Supply:	N/A	(2) AAA Alkaline batteries (included)
Weight:	< 4 Pounds
Material:	Powder-Coated Enclosure
Dimensions (Control Module):	8" x 3-1/8" x 6" (20.3 x 7.9 x 15.3 cm)
Load Range:	1-10,000 psi using 1/2" pull-stubs
Display:	Analog	4.5 digit seven-segment display gauge with 0.5% accuracy
Operating Temp. Range:	50 - 120°F
Compatible Pistons:	F-1, F-2, F-4, F-8, F-20 (F-8/12)
Adhesion Strength Test Range with F-8 Piston:	50-4,000 psi
With Optional F-20 Piston:	400-10,000 psi
Tensile Strength Conversion:	Chart		Automatic using included laptop
Computer Connectivity:	-	-	Netbook with LabView Software
Sharing Capabilities:	-	-	Sharing via USB
Reporting:	-	-	Computer Generated Reports
Documenting Capabilities:	-	-	USB Camera
Standards:	ASTM D-4541, and ACI 503-30 Appendix A, A.1.		ASTM D-4541, ACI 503-30 Appendix A, A.1, ISO 4624, ASTM D7234 and ISO 16276-1

Piston:	F-1	F-2	F-4	F-8	F-8/12 (F-20) (3 Load Ranges)
Load Range (PSI using 1/2" dia. pull-stubs):	50-500	100-1000	200-2000	400-4000	F-8; 400-4000 F-12; 600-6000 F-20; 1000-10,000
Piston Diameter:	1-3/4" (1.75")	2-1/4" (2.25")	2-7/8" (2.875")	3-3/4" (3.75")	5 3/4" (5.75")

Standards

The PATTI® instrument and method conforms to ASTM D-4541, "Pull-Off Strength of Coatings Using Portable Adhesion Testers". Also can be used for the testing of coatings on concrete according to ACI 503-30 Appendix A, A.1. 50mm pull-stubs required.

Procedure

The PATTI® Quantum uses compressed inert gas to apply a continuous tensile load to an aluminum pull-stub which is bonded to the test surface with an adhesive.
After the adhesive has cured, the operator attaches the selected piston.
Then the operator pushes and holds the "RUN" button. A continuous load is then applied perpendicular to the pull-stub until failure occurs, or until a specified load is reached.
The PATTI® can be pressurized with CO2 cartridges to make it portable for field use. In the laboratory, nitrogen or any clean inert gas system providing at least 100 psig (up to 160 psig) can be used.

Delivery Content

PATTI Quantum Analog includes Analog Laboratory/Field control module, one single load range piston (state range desired), transport toolbox, accessory kit [50 1/2 pull-stubs, 50 adhesive masks, high and low-pressure hoses, epoxy kit, talcum powder, *6 CO2 cartridges] and instruction manual. (Due to FAA regulations CO2 cartridges will only be shipped by ground. Cartridges can generally be purchased at bike shops or sporting goods stores.)
