CFM / CMM Thermo-Anemometers
Article No. 10131
Thermo-Anemometer

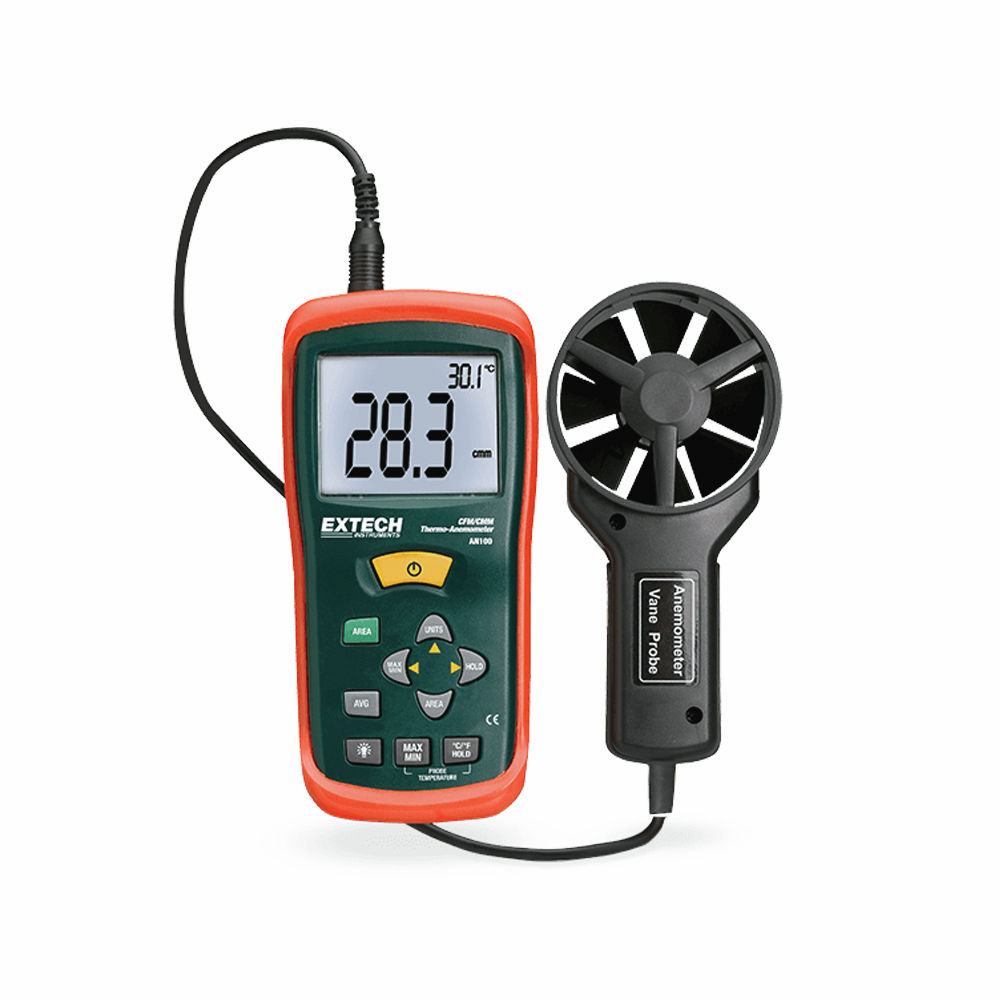

- AN100 CFM/CMM Anemometer
Features
- The CFM / CMM Thermo-Anemometers can measure air flow, air velocity and ambient temperature.
- There are two models available:
- The AN100 CFM/CMM
- The AN200 with a built-in non-contact InfraRed Thermometer
- Simultaneous display of Ambient Temperature and Air Flow or Air Velocity
- Up to 8 easy to set Area dimensions (ft2 or m2 ) are stored in the meter’s internal memory
- 20 point average function for Air Flow
- Super large LCD Backlit Display
- 3% velocity accuracy via low friction 2.83"D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable
- Data Hold and MIN/MAX
- Auto Power off
- Applications: HVAC installation, repair, diagnostics, and optimization; Fume hood testing, installation, and verification; Ventilation system installation, servicing, and analysis; Environmental wind and temperature testing/analysis; Boiler rooms, Ionizer flow output monitoring; Automobile aerodynamic testing; Plant/Facilities Maintenance
Technical Attributes
-
- Data
-
Specifications Range Resolution Basic Accuracy
Air Velocity:0.40 to 30.00 m/s 0.01 m/s ±3% m/s 1.4 to 108.0 km/h 0.1 km/h ±3% km/h 80 to 5906 ft/min 1 ft/min ±3% ft/min 0.9 to 67.2 mph 0.1 mph ±3% mph 0.8 to 58.3 knots 0.1 knots ±3% knots Air Temperature: 14 to 140°F (-10 to 60°C) 0.1°F/°C ±6.0°F (3°C) InfraRed Temperature:
(AN200 Only)-58 to -4°F (-50 to -20°C) 0.1°F/°C ±9.0°F (5.0°C) -4 to 500°F (-20 to 260°C) 1°F/°C ±2% reading or ±2°F (°C) whichever is greater
Airflow:AN100 0 to 9999 CMM (m3/min) 0.1 0 to 9999 CFM (ft3 /min) AN200 0 to 999,999 CMM (m3/min) 0.1 0 to 999,999 CFM (ft3 /min) Dimensions/Weight: 7 x 2.9 x 1.3" (178 x 74 x 33mm) / 1.6lbs (700g)
Delivery Content
Comes complete with 9-Volt battery, protective rubber holster, and case.
